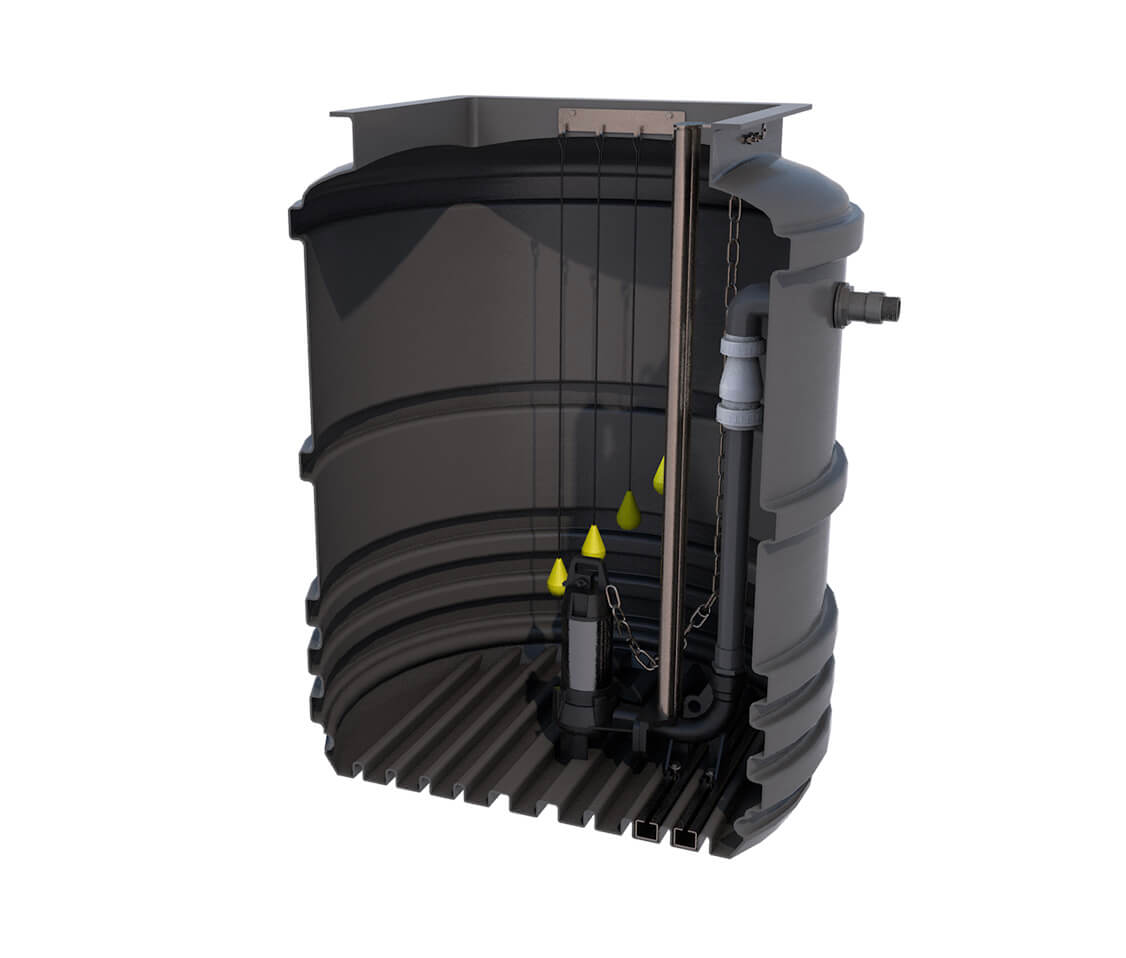

1600 Litre Single Sewage Pump Station

All our pump stations are manufactured to the highest British Standards relevant to our industry such as BS EN 12050-1:2001.

Wastewater lifting plants for buildings and sites, BS EN 12056-4:2000, Gravity drainage systems inside buildings and BS EN 752-6:1998 Drain and sewer systems outside buildings.

All our package units are delivered pre-built for quick and easy installation. The pumping station consists of heavy duty Macerator or Vortex sewage pump.

This sewage pumping station is cable of pumping 200m with a buildings flow rate of 2.5l/s through a 63mm MDPE pump. (Based on an average static head of 3.5m)

Included within your Sewage Pumping Station Package:

• 1 x Heavy Duty Macerator or Vortex Pump and pedestal kit with guiderail
• 1 x 1000mm x 1000/1500/2000mm poly pump chamber with 10-year warranty
• 1 x Pedestrian rated 600mm x 600mm steel access cover
• 1 x Lifting chain and D-link
• 1 x Non return valve
• 1 x Internal PVC discharge pipe work kit
• 1 x 110mm Seal for incoming Pipe
• 1 x 24 months warranty

PS1600SPV6

Capacity (litres): 1,600 ltr

Height (mm): 1500mm

Diameter: 1200mm

Size: 600 x 750 mm

Load / Load Rating: Pedestrian
