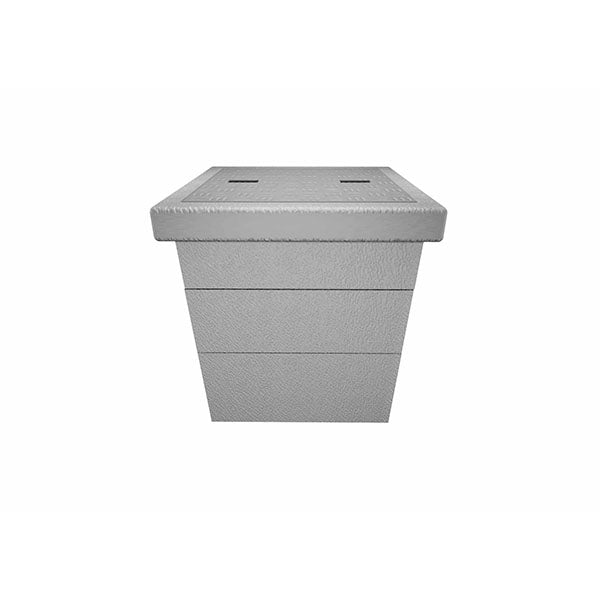

1200mmx 750mm x 80mm House Inspection Chamber Frame - FP McCann.

FP McCann’s precast concrete inspection chambers are available in four common sizes: 600 x 450, 750 x 600, 1000 x 675 and 1200 x 750. Manufactured in accordance with BS EN 1917 / BS5911, each section has a tongue and groove joint and can be sealed with a sand and cement mortar or bitumen sealant in the same fashion as a circular manhole and chamber ring. To complete the chamber, FP McCann has a range of covers and ground level components. FP McCann’s frame (also known as a surround) and lid combination is designed to sit flush with the top course, such as tarmac or concrete surfacing or in grassy areas. The lid itself features an anti-slip chequered finish and recessed lifting points to allow removal from the frame by use of standard lifting eyes.

Weight (kg): 185 kg

Wall/Slab Thickness (mm): 80mm

Depth (mm): 80mm

Width (mm): 750mm

Length (mm): 1200mm

Diameter (mm):

Height (mm):

Weight (kg): 185 kg

Capacity (litres):
