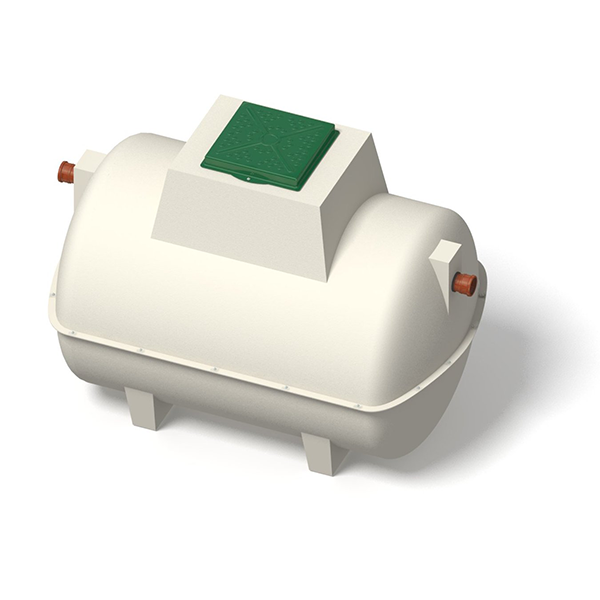

10 Person Marsh Ensign Ultra Sewage Treatment Plant (Gravity)

Why choose the Marsh Ensign Sewage Treatment Plant?

If your property is unable to connect to the mains sewerage infrastructure, your most cost-effective and environmentally friendly “off mains” option is a packaged sewage treatment plant. In basic terms, a sewage treatment plant is a below-ground tank which treats the incoming effluent to an environmentally acceptable quality. This treated water can then be legally discharged to flowing surface waters or in-ground soakaway following applicable exemptions or consents.

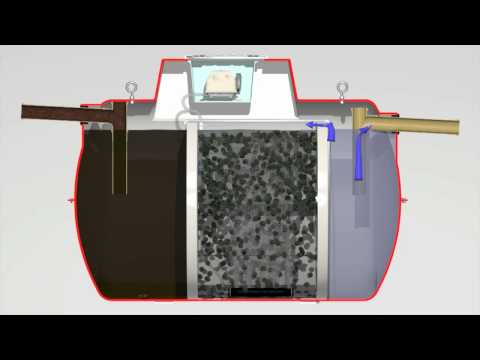

The Marsh Ensign Sewage Treatment Plant is an excellent choice. Notwithstanding the anaerobic absorption occurring in the essential settlement tank (as septic tanks) the Ensign unit permits the cleared up water to go into a second “air circulation” chamber where it is dealt with to expel the broken up constituents. Here oxygen-consuming microscopic organisms, upheld by diffused air and versatile media, guarantee full treatment is accomplished before the treated emanating (and ‘sloughed off’ microscopic organisms) stream to the last settlement chamber before release. This plant treats effluent to British and European Standards to allow it to be discharged back into the watercourse whilst reaching national consent standards. Our tanks can be manufactured with either a gravity or pumped outlet to meet your site requirements.

Our Ensign domestic sewage treatment plant comes with lifting eyes to make unloading and installation faster and safer. They have also been designed to self-level on the base and use unique pipe connections to ensure the installation is undertaken efficiently and correctly.

What are the benefits of the Marsh Ensign Sewage Treatment Plant?

We find our customers like the Ensign range due to its ease of installation, reliability, and cost-effective operation and maintenance.

• No moving parts
• Low running and maintenance costs
• Faster and safer to install due to lifting eye
• Tested and certified to BSEN12566-3
• 50-year design life
• 25-year structural guarantee

What size of Sewage Treatment Plant should you choose?

This sewage treatment plant is suitable for 10 people or a 6 bedroom house.

If you are unsure of what size is required, please feel free to call us or view our size guide here.

Our sewage treatment plant installation service
If required, we can also provide a complete package where we will supply and install your sewage treatment plant at an additional cost. Our installation service is dependent on your location. Contact our team of specialists on 0121 351 3230 to find out more.

Outlet Diameter (mm): 110mm

No. of people: 10

Height (mm): 1935mm

Outlet: Gravity

Outlet Invert: 625mm

Inlet Invert: 550mm

Width (mm): 1650mm

Length (mm): 2602mm

We can also offer an installation service for our stormwater attenuation, rainwater harvesting, water storage and sewage treatment solutions. Get in touch here.

Our team of experts are available and ready to speak to you. You can contact us or call us directly on 0121 351 3230. Available Mon-Friday 8am-5pm.
