7 Person Graf One2Clean Plus Sewage Treatment Plant (Pumped outlet)

This 7 person One2Clean Plus sewage treatment plant by Graf offers a straight-forward solution to off-mains effluent treatment. The pumped outlet offers the additional benefit of being able to install the tank in a wider number of locations. This is because it does not rely on gravity. One tank is required with one process chamber, which maximises efficiency.

Installation is quick and easy, as no concrete is required, simply use a gravel base and backfill.

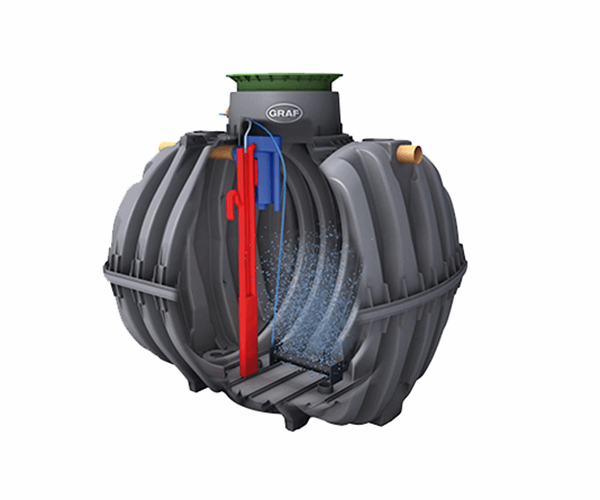

There are 3 stages to the treatment process; aeration, settling phase and clear water extraction. This ensures that the sewage is treated to a high standard, and is suitable to be discharged at the end of the process.
The sewage enters the tank and is filtered using an aeration process. The sludge then settles at the bottom of the tank, and the remaining clear water is extracted and drained in a soakaway or other drainage method. This means that there is incredibly little sludge to have removed, and only one pumping process is required, meaning minimal maintenance costs.

Benefits:
- Up to 99% efficiency
- Low-energy consumption
- Free commissioning available
- 3 stage treatment process
- Quiet operation
- Free delivery
- Holiday mode
- No concrete required

There is also a double sludge storage volume which means that more time can pass before a sludge removal is required. The tank is 100% resistant to corrosion which means that its lifespan is optimised, as it is resistant to the elements.

STP7ONE2CPLUSPIPS-GRAF

Capacity (litres): 4,800 ltr

Weight (kg): 185kg

Height (mm): 2110mm

Width (mm): 1985mm

Length (mm): 2280mm
