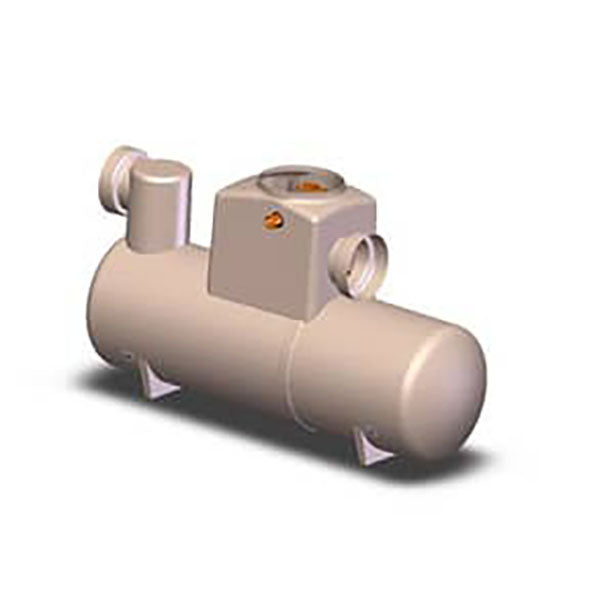

Klargester Bypass Separator 5560sqm

This Klargester bypass separator is suitable for up to 5560sqm and provides the ideal solution for low risk floods – Bypass separators are used when it is considered an acceptable risk not to provide full treatment, for very high flows, when there is little possibility of a combined heavy rainfall and large spillage e.g.

• Surface car parks
• Roadways
• Lightly contaminated commercial areas

Bypass separators fully treat all flows generated by rainfall rates of up to 6.5mm/hr. This covers over 99% of all rainfall events. Flows above this rate are allowed to bypass the separator.

Features and benefits

• Light and easy to install, saving you time and
money
• Class I design
• GRP or rotomoulded construction (subject to
model)
• Oil alarm system available (required by
EN858-1 and PPG3)
• Inclusive of silt storage volume
• Fitted inlet/outlet connectors
• Vent points within necks
• Extension access shafts for deep inverts
• Maintenance from ground level
• CE-marked

Why choose Klargester?

Klargester were one of the first UK manufacturers to have separators tested to EN 858-1. The British Standards Institute (BSI) tested the required range of Kingspan Klargester Bypass separators and certified their performance in relation to their flow and process performance assessing the effluent qualities to the requirements of EN 858-1. Klargester bypass separator designs follow the parameters determined during the testing of the required range of bypass separators.

Std Pipework Diameter (mm): 315mm

Diameter: 1220mm

Oil Capacity (litres): 150 litres

Drainage area (m2): 5560m2

Daily Flow (m3/day): 10l/s

Flow (l/s): 10l/s

Length (mm): 2069mm

Silt Capacity (litres): 1000 litres

Pipework Diameter (mm): 315mm
