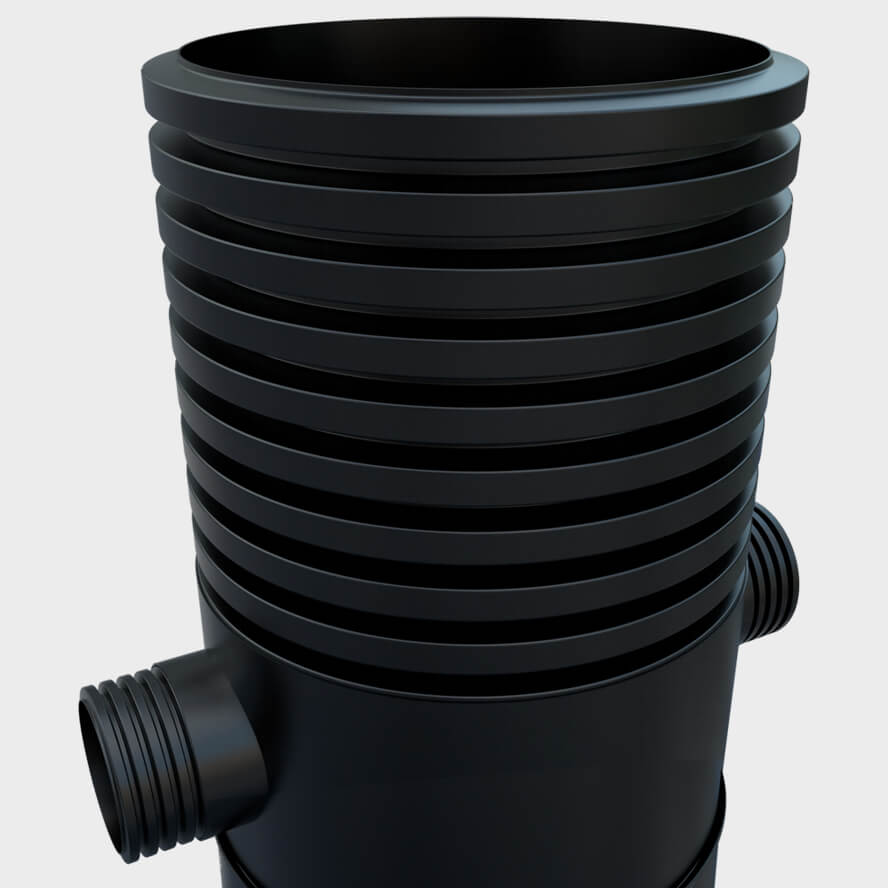

1050mm Oriflo P Series Flow Control Chamber with Unprotected Orifice Plate

Application
The ORIFLO P SERIES is specifically designed for installation downstream of pre-filtered surface water run offs ie. permeable paving and cellular/crate attenuation systems

Design

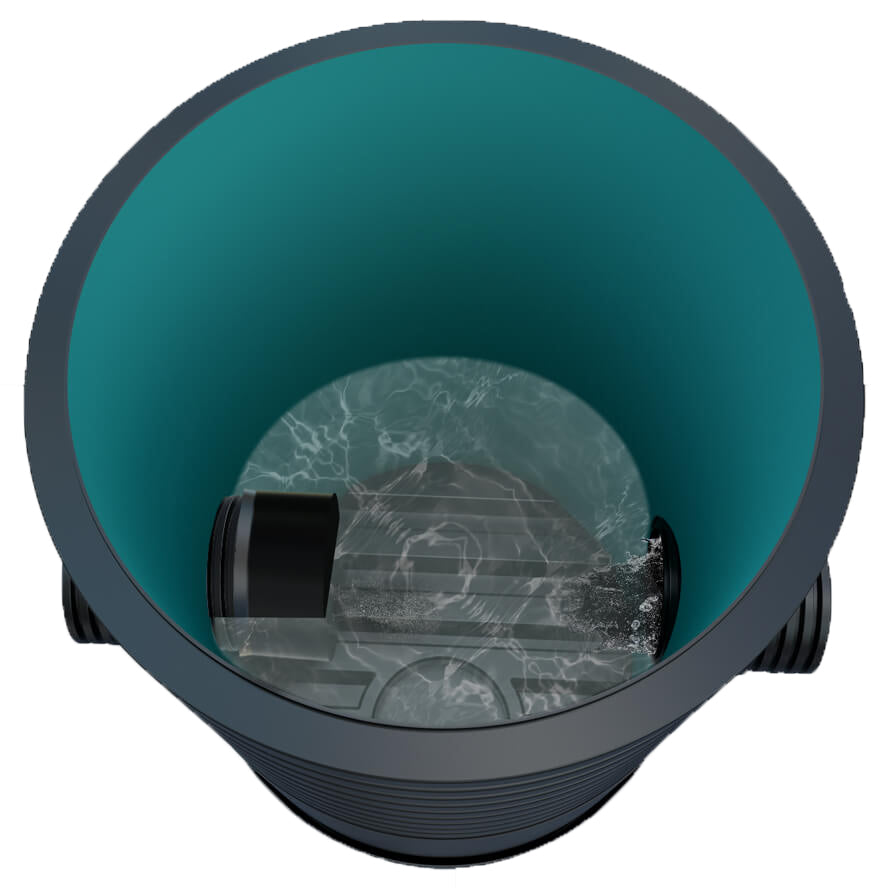

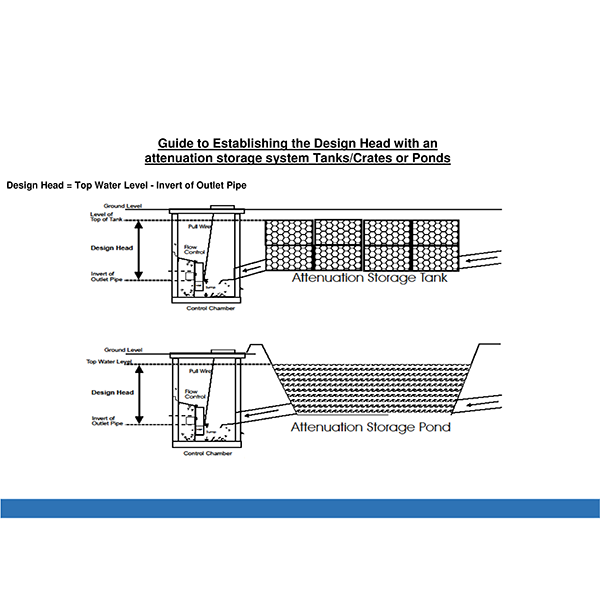

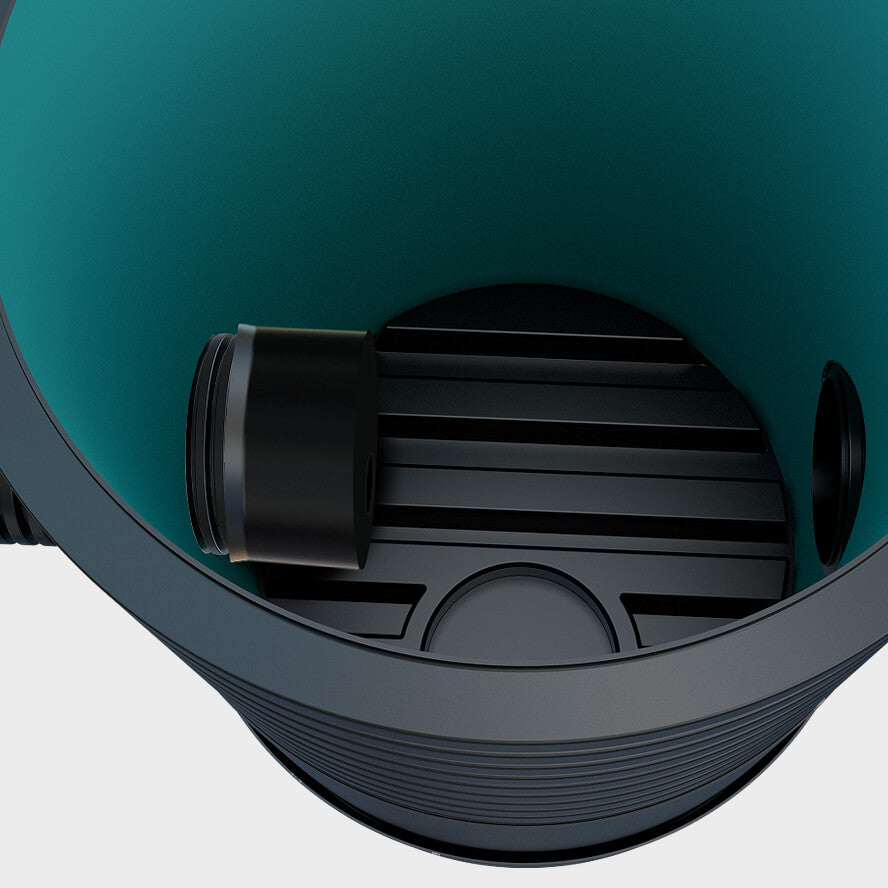

Robust single-piece chambers with a fully integrated orifice plate with a protected screen. All P SERIES models now come with a 300mm sump, that will store finer silts that may pass through the screen, in so offering further sustainability. The orifice diameter is calculated to suit the on-site design criteria for the outflow into the connecting sewer. With Larger diameter chambers are available for special order.

Features & Benefits

• One-piece unit delivered ready to install, reducing installation time and costs
• Relatively Lightweight
• Offering significant on-site savings against PCC and other traditional construction methods, as they need no construction or wet trades.
• Quick and simple to install
• Granular Backfill
• 300mm deep sump for the catchment of fines
• Various options on chamber depth and pipework to suit specific site requirements.
• Eliminates wastage associated within-situ construction
• Chemically Resistant
• Manufactured in the UK

OFCP1050/1.5

Diameter: 1050mm

Inlet/Outet Pipework: 110mm (EN 1401), 150mm (Twinwall), 160mm (EN 1401), 225mm (Twinwall)

Inlet Invert: 700mm, 1200mm, 1700mm
