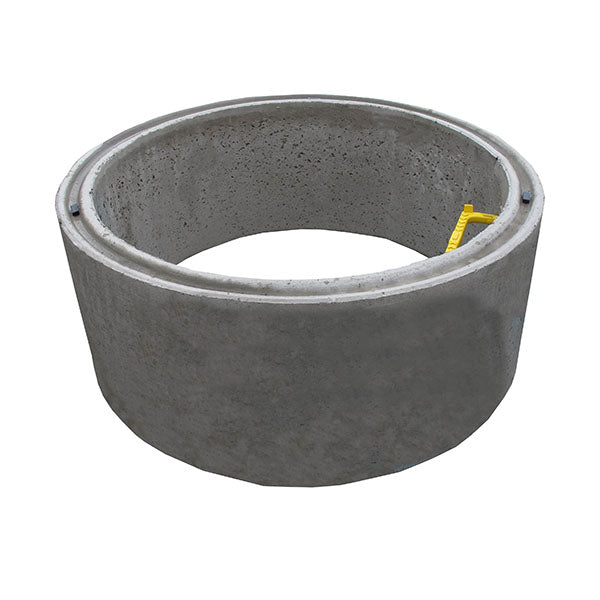

1200mm x 500mm depth Concrete Manhole Ring with Double Step Irons

A Concrete Manhole Ring with Double Step Irons is a precast concrete structure that is designed to provide access to underground utilities such as water, sewage, or electrical systems. The manhole ring is circular in shape and has a diameter of 1200mm with a depth of 500mm.

Made from strong, dense concrete, FP McCann manholes are capable of withstanding infiltration and attack from corrosive environments. Complimentary products such as cover slabs are also available.

The double step irons also serve as a ladder, making it easier for workers to descend into the manhole to perform maintenance and repairs.

Applications:

•Stormwater Manholes
•Sewer Manholes
•Pipeline Junctions
•Pipeline Direction Changes

N.B: Prices do not apply when shipping to London or Scotland – please contact 0121 351 3230 to discuss.

C1200500R-FPM

Weight (kg): 880 kg

Diameter: 1200mm

Lifting Hole Qty/Dia (p/unit) (mm): 4 x 45 dia mm

Barrel Dia (mm): 1380mm

Wall/Slab Thickness (mm): 90mm

Clear opening (mm): 1200mm x 500mm
