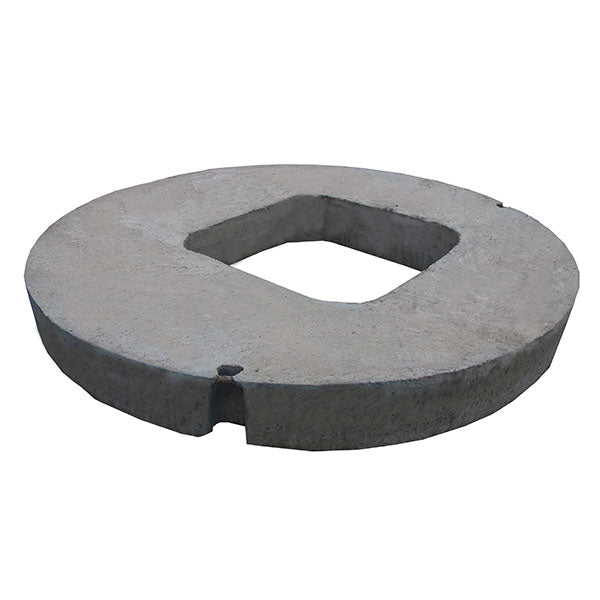

1200mm Concrete Cover Slab 675mm x 675mm square opening

FP McCann manhole cover slabs are available in sizes DN900 to DN4000. They are heavy duty, reinforced concrete slabs and act as a platform to cap the manhole chamber as well as to provide a base for any regulating brickwork prior to finishing with the manhole lid. They are also referred to as ‘reducing slabs’ as they reduce the access point opening size into the chamber. Landing slabs in sizes DN1500 to DN3000 are typically used in deeper manholes, limiting the depth to a maximum of 6 metres at any point, providing a safe landing or resting platform at such intervals.

N.B: Prices do not apply when shipping to London or Scotland – please contact 0121 351 3230 to discuss.

C1200CS675-FPM

Weight (kg): 455 kg

Diameter: 1200mm

Shaft or Chamber Nominal Size (mm): 1200mm

Wall/Slab Thickness (mm): 150mm

Opening Configuration Location: Eccentric

Opening Configuration Size (mm): 675 x 675mm

Outside dia (m): 1450mm
